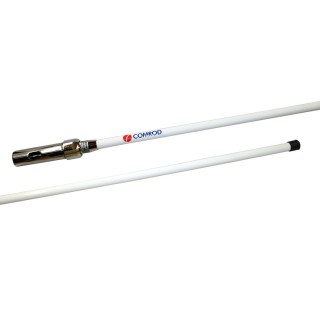

Comrod AV55P4 8dBi WLAN Antenna - 4'

AV55P4 8dBi WLAN Antenna - 4'

AV55P4 is a high gain antenna for wireless LAN that complies with the IEEE802.11g. The antenna is omnidirectional and has a beamwidth of 25° which should be suitable for installations on vessels that can heel. It is a high quality antenna with a durable construction and a beautiful finish for installation on all kind of vessels.

Specifications:

• Design: Phased V2 elements in a collinear array with a coaxial choking sleeve to suppress cable radiation

• Radiating elements completely enclosed in polyurethane foam
  within a fiberglass tube

• Height: 4', 1.25m

• Weight: 0.55 kg

• Wind rating: 55 m/s = 125 mph

• Finish: Polyurethane lacquer, white

• Temperature range: -40°C, +50°C;+ -28°F, +122°F

• Frequency range: 2400 - 2480MHz

• VSWR: 1.8

• Nominal impedance: 50 ohm

• Power rating: 5W

• Gain: 8dBi

• Polarization: Vertical

• Connector: N female

Mounting:
The AV55P4 is fitted with BSP1" x 11 female ferrules. Can be used with all standard mounting accessories.
