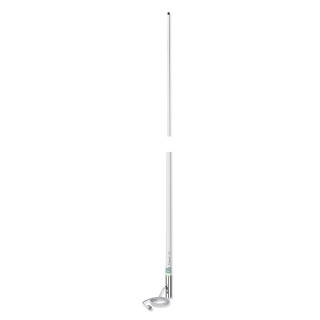

Shakespeare 5101 8' VHF Antenna
Бонусные баллы: 1
11182.83 Р
Shakespeare CENTENNIAL™ Style 5101
8' LENGTH, VHF Marine 6dB
END-FED WITH MATCHING STUB
A new standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8' antenna with a brass element and a smooth, high gloss, polyurethane finish that wont turn yellow in the sun. This antenna delivers not only performance, but superb value.
Technical Specifications:
8' LENGTH, VHF Marine 6dB
END-FED WITH MATCHING STUB
A new standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8' antenna with a brass element and a smooth, high gloss, polyurethane finish that wont turn yellow in the sun. This antenna delivers not only performance, but superb value.
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1"-14 thread
- Includes 15' RG-58 cable and a PL-259 connector
- Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16' antenna system
- One section
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | VHF Marine Band |
| Bandwidth: | (within 2.0 1 SWR): 5 MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Impedance: | (Ohms): 50 |
| Gain: | 6 dB |
| Max. Input (Watts): | 50 |
| DC Ground: | YES - however, the antenna will read "open circuit" when tested with ohmeter. |
| Termination: | 15' RG-58 cable |
| Height (feet): | 8' |
| Polarization: | Vertical |
| Radiation pattern: | Omni - directional |
