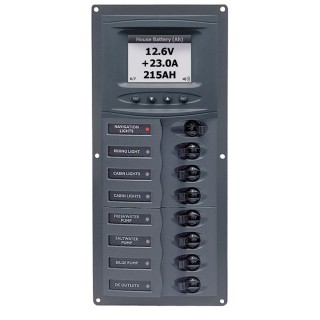

BEP MARINE BEP Panel 8SP DC12V DCSM Vertical

Panel 8SP DC12V DCSM Vertical
DC circuit breaker panel with digital monitoring

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications

Total Positions: 8 Loads
Circuit Breakers: 2X 5A, 2X 10A, 3X 15A, 1X 20A
Nominal Voltage: 12V
Maximum Amperage: 160A
Dimensions: 11.6" X 5" X 2.5"
Neg Bus: 6 Way
