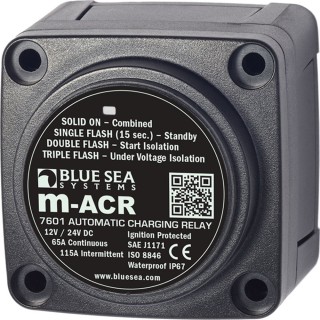

BLUE SEA SYSTEMS Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp

Name: BLUE SEA SYSTEMS Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp
Brand: Blue sea systems
SKU: 7601
Price: 87 RUB
Availability: InStock

Бонусные баллы: 1

арт.: 7601

Производитель: Blue sea systems

На складе в США: 6 шт.

10014.14 Р

7601 DC Mini ACR Automatic Charging Relay - 65 Amp

Features:

65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines
Compact case design allows surface and panel mounting
Senses charging on two battery banks
Snap-on cover insulates terminal connections
LED indicates ACR status
1/4" x .032" male quick connect terminal for ground
5/8" (16 mm) stud length to accept multiple cable terminals
12V DC voltage input

Specifications:

Intermittent Rating: 5 min.: 115A
Terminal Stud Size: 1/4"-20
Relay Contact Position: Open (30 sec.): 12.75V DC
Continuous Rating: 65A
Maximum Torque: 75 in-lb (8.5 Nm)
Relay Contact Position - Open High: 16.0V DC
Amperage Operating Current: 175mA (Combine)
Relay Contact Position: Combine (30 sec.): 13.0V DC
Under Voltage Lockout: 9.5V DC
Amperage Operating Current: 15mA (Open)
Relay Contact Position: Combine (2 min.): 13.6V DC
Maximum Cable Size: 1/0 AWG
Relay Contact Position: Open (10 sec.): 12.35V DC
