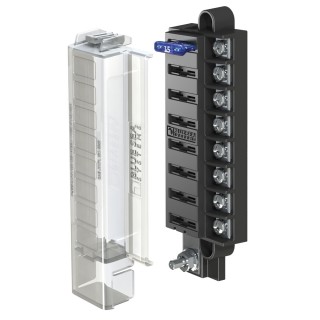

BLUE SEA SYSTEMS Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover
Бонусные баллы: 1
6368.38 Р
ST Blade Compact Fuse Blocks - 8 Circuits w/Cover
Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.
Specifications
Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.
- Compact common source fuse block
- Accepts ATO® and ATC® fast acting blade fuses
- Single side entry wiring
- Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Small format standard and custom labels available
Specifications
- Circuits:8
- Maximum Amperage: 100A per block / 30A per circuit
- Maximum Voltage:32V DC
- Mounting:#8 Screw (M4)
- Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)
