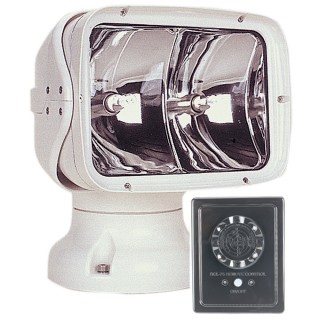

ACR ELECTRONICS ACR RCL-75 Searchlight w/Point Pad™ - 180,000 Candella - 12V

RCL-75 Searchlight with Point Pad™ - 180,000 Candella - 12V

• Dual lamp design provides redundancy, reliability-works when you need it

• Bright, powerful halogen beam with 3 h x 5 w beam spread

• Easy-to-install Point Pad-style joystick control

• Robust, function-and feature-rich searchlight is easy to install

• 7-wire wiring harness, 17' length

• Electronics located in water-resistant light head, instead of traditional light base location, for protection from water accumulation

• 45° down pitch ocular design provides enhanced visibility when docking

• 18° up pitch to illuminate draw bridge towers, etc.

• Lamps easily replaced by removing top cap to access rear light assembly

• Desiccated filter dries air; protects reflector and light assembly

• Innovative "direct drive" system eliminates uncontrolled light movement in choppy conditions

• Heavy-duty gear teeth and electric motors

Size:
7.5" x 8.75" x 7.5"(19.1 x 22.2 x 19.1 cm)
Weight:
4.2 lbs (1.9 kg)
MATERIAL:
UV ASA
COLOR:
White, UV protected
OPERATION:
Remote controlled Point Pad™
ACCESSORIES:

• Recessed/Surface mount Point Pad remote control; replacement bulb Product No. 9403;

• Replacement light assembly Product No. 9404

• Secondary Point Pad™ (P/N 9428)

• Stackable 1" riser (P/N 9427)

• 2nd station cable harness (P/N 9426)

• Second station harness adapter(P/N 9442)

BEAM ANGLE:
3°vertical, 7° horizontal
ELEVATION ANGLE:
63^o vertical (18^o up, 45^o down)
ROTATION:
361^o
ROTATION SPEED:
6-7° per second,
ELEVATION SPEED:
6-7° per second (12 VDC)
DUAL LAMPS:
High intensity 55W Halogen, 2 each
LIMITED WARRANTY:
1 year
UNITS PER CARTON:
1, complete  with cable, point pad and special wrench/screwdriver. Special shapeable 1" riser plate available.
