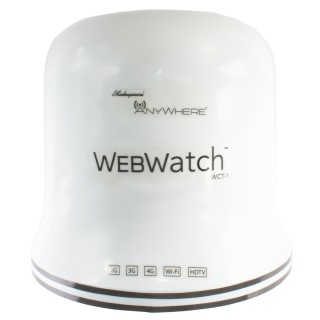

Shakespeare WebWatch™ Wi-Fi, Cellular, TV Antenna

WebWatch™ Antenna

Take your entertainment wherever you go. WebWatch lets you access the internet from a Wi-Fi Hotspot or cellular network with up to 4G speeds and share it wirelessly or through Ethernet. Now, you don't need another antenna for your TV. Access your favorite local TV channels through the Webwatch's built in TV receiver. Web and Watch, on your boat, recreational vehicle, cabin or AnyWhere else.

Features

• Antenna diversity

• Auto switch between Wi-Fi and Cellular

• iOS and Android app, web-based management

• Wi-Fi hotspot or Ethernet port network

• SMS and app reboot funciton

• High performance CPU and SDRAM

• Single cable for power and TV

Benefits

• Pick up the best swignal with maximum clarity

• Save on data when possible, uninterrupted

• Device management toos, optimize mobile screen, computer or tablet

• Flexibility to extend Wi-Fi network

• Safely reboot without accessing power supply

• fast, reliable, and responsive

• Only single cable to be installed if not using LAN

Technical Specifications

• POWER SUPPLY & CONSUMPTION: DC 12V/24V, 600 A @ 12VDC Max

• DEVICE MANAGEMENT: iOS app, Android app and web browser

• INTERNET ACCESS THROUGH: wi-Fi hotspot or 3 Ethernet ports

• NUMBER OF USERS: up to 32 on Wi-Fi and Cellular

• CONNECTORS: Male "f" connector (TV), 1 x Ethernet (WAN), 3 x Ethernet (LAN)

• WIRE: 25t RG-59 coax cable/power cable

• RoHS COMPLIANT: Yes

• DIMENSIONS: Diameter 11.75" x 13"

• WEIGHT: 3.85lbs

• WIRELESS APPROVALS & CERTIFICATIONS: FCC and CE

• WARRANTY: 2 Years

Wireless and Network

• INCOMING: Long-Range Wi-Fi receiver, Cellular or 1 WAN Port

• OUTGOING: Thru Wi-Fi Router, thru Ethernet Router

• FREQUENCY: 2.4 GHz

• OTHER NETWORK FEATURES: Built-in Firewall, Dynamic DNS, Integrated Open VPN, IP Sec

•

• PORT SPEED: LAN - 10/100Mbps, WAN - 10/100Mbps

• GAIN: 2db

Cellular Specifications

• BANDS: LTE (FDD) - B2/B4/B5/B17 with diversity, HSPA - DC-HSPA+/HSPA/WCDMA B2/B4/B5 with diversity

• SPEED: LTE 4G - up to 100 Mbps Download, 50 Mbps Upload (dependent on carrier), HSPA+ 3G - up to 42 Mbps Download, 5.76 Mbps Upload (dependent on carrier)

• GAIN: 4db

TV Specifications

• RECEIVING RANGE: VHF/UHF

• FREQUENCY RANGES: AM: 520-1719 KHz, FM: 88-108MHz, UHF: 470-790MHz

• ANTENNA GAIN: 28dB

• MAX OUTPUT LEVEL: 100dBuv Max

• IMPEDANCE: 75

• NOICE FIGURE: ≤4.5dB

• COMPATIBILITY: NTSC, ATSC (HDTV), T-DMB
