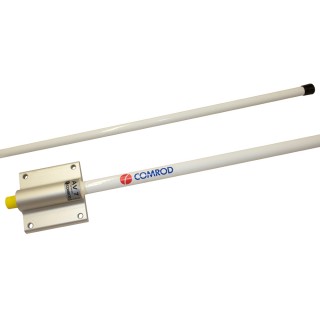

Comrod AV7M Marine VHF Antenna - 4'

AV7M Marine VHF Antenna - 4'

AV7M is a high quality dipole antenna designed for the marine VHF radio telephone service. It is a high quality antenna with a durable construction and a beautiful finish for installation on all kinds of vessels.

Specifications:

• Design: Center-fed coaxial dipole

• Radiating elements completely enclosed in polyurethane foam within a fibreglass tube

• Mounting bracket: Aluminium

• Height: 1.25m, 4ft

• Weight: 1 kg, including U-bolts

• Wind rating: 55 m/s = 125 mph

• Finish: Polyurethane lacquer, white

• Temperature range: -55°C, +71°C; -67°F, +160°F

• Frequency range: 156-162 MHz, VSWR < 1.5:1, 145-165 MHz, VSWR < 2:1

• Nominal impedance: 50 ohm

• Power rating: 100W

• Gain: 2dbi

• Pattern: Horizontal plane: Omnidirectional

• Polarization: Vertical

• Connector: UHF female is standard

• DC-grounded: Yes

Mounting:
AV7 can be mounted directly onto the bulkhead by means of 4 holes in the aluminium bracket. It can also be attached to a mast or tube using the supplied M6 stainless steel U-bolts. The mounting tube can be horizontal or vertical.

Suitable Cable:
RG8, RG213 or similar
