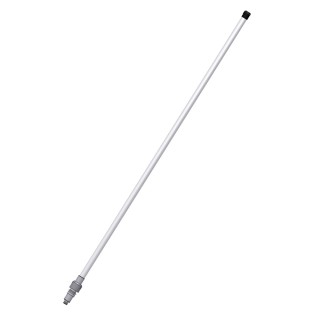

Comrod AV2458P4 4' Dual-Band WLAN Antenna

AV2458P4 4' Dual-Band WLAN Antenna

AV2458P4 is a dual-band omni-directional antenna for wireless LAN applications. The radiating element is located high in the whip to
ensure it is clear of obstacles. It is a high quality antenna with a durable
construction and a beautiful finish for installation on all kind of vessels.
Electrical Specifications:

• Frequency Range: 2.4 - 2.5 GHz / 4.9 - 5.8 GHz

• VSWR: 1.7 nominal (2.2 maximum)

• Nominal Impedance: 50 ohm

• Power Rating: 5W

• Gain: 2.4 - 2.5 GHz 3 dBi nominal / 4.9 - 5.8 GHz 1 dBi nominal

• Polarization: Vertical

• Connector: N female

Mechanical Specifications:

• Design: Dipole design. Radiating elements completely enclosed in polyurethane foam within a fiberglass tube

• Height: 4' (1.25M)

• Weight: 0.6 kg

• Wind Rating: 55 m/s = 125 mph

• Finish: Polyurethane lacquer, white

• Temperature Range: -40°C, +50°C;+ -28°F, +122°F

Mounting:
The AV2458P4 is fitted with a BSP1" x 11 female nut.
It can be used with all standard mounting accessories.
BSP: British Standard Pipe
