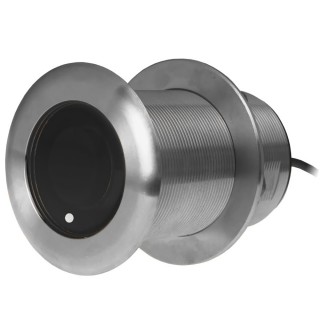

Navico XSONIC SS75M Stainless Steel Thru-Hull Medium CHIRP Transducer - 12° Element - 9-Pin

XSONIC SS75M Stainless Steel Thru-Hull Medium CHIRP Transducer - 12° Element - 9-Pin

The SS75M is a bronze, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

• 600 W Thru Hull Medium CHIRP (80-130kHz)

• Depth/Temp (12° tilt)
• Black 9-pin connector
• Cable length 10M (33.0')
• Easy to install

CHIRP

CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures.

Depth/Temperature

Calculates how deep the water is, so that you can avoid running aground, while also incorporating a temperature sensor for accurate water temperature readings.

Medium Frequency

CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.

Highly Accurate

Provides extremely accurate data.

12° Tilt

The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.

Low Profile

The low profile housing minimizes drag with just 5mm extending outside of the hull.

Plug & Play Connection

Easily connect to NSSevo3
