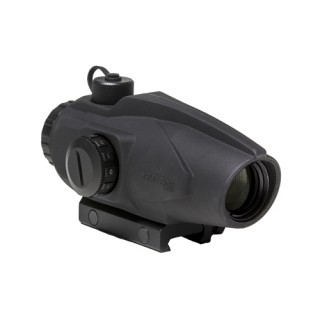

SIGHTMARK Wolfhound 3x24 Prismatic Sight

Sightmark Wolfhound 3x24 Prismatic Weapon Sight (SM13025)

Delivering flawless short to medium range shots on an AR platform, the Sightmark Wolfhound 3x24 Prismatic Weapon Sight is ideal for a variety of challenging shooting situations including 3-gun competitions, hunting and law enforcement applications. The Wolfhound 3x24 Sight is a military-inspired, fast-paced optical device featuring longer than average eye relief and an advanced horseshoe dot reticle thats ballistically matched to .223, 55 and 62 grain with holdovers from 300 to 900 yards. Its fixed power keeps the object in focus at 10 yards or more.

Compact enough to not weigh down the rifle, but durable enough to shield from impact, the device includes a built-in aluminum picatinny mount and rubber armor finish. Fully submergible, the Wolfhound 3x24 Sight is 100% waterproof, dust proof and shock proof.

Features:

- Fully multi-coated optics
- Prismatic optical system
- Red/Green reticle illumination
- Rubber armored, single piece 6061-T6 aluminum housing
- IP68 waterproof rating - submergible to 3m/10ft
- Fogproof, shockproof, nitrogen purged
- Wide range of operating temperature, -40 to 160 oF
- Low power consumption

Specifications:

- Reticle Type: HS-223
- Illuminated (Yes/No): Yes
- Finish/Color: Black
- Objective Lens Diameter, mm: 24
- Exit pupil diameter, mm: 8
- Field of view (m 100m): 10.48
- Field of view (degrees): 6
- Parallax setting (yds): 100
- Elevation maximum adjustment range (MOA): 160
- MOA adjustment (one click): 1/2
- Exit pupil diameter, mm: 8
- Battery type: CR2032
- Battery voltage (V): 3
- Waterproof/nitrogen filled (yes/no): Yes
- Fog proof (yes/no): Yes
- Body material: Aluminum - 6061 / Rubber
- Lens Coatings: Fully multicoated AR green
- Operating Temperature (F):-40 to 160
- Weight, oz: 17.2
- Reticle Color: Red/Green
- Reticle Brightness Settings: 5
- Magnification, x: 3
- Eyepiece diameter, mm: 27
- Eye Relief, mm: 72
- Field of view (ft 100yd): 31.6
- Diopter adjustment (+/-): +3 ... -3
- Windage maximum adjustment range (MOA): 180
- Windage & Elevation lock (yes/no): No
- Maximum recoil (G's): 800
- Eye Relief, mm: 72
- Battery life (hours): 200-4000
- Sunshade (yes/no): No
- Shockproof (yes/no): Yes
- IP Standard (water rating): IP68
- Lens Material/type: Glass
- Mount type: Picatinny
- Dimensions, mm: 150x72x77
